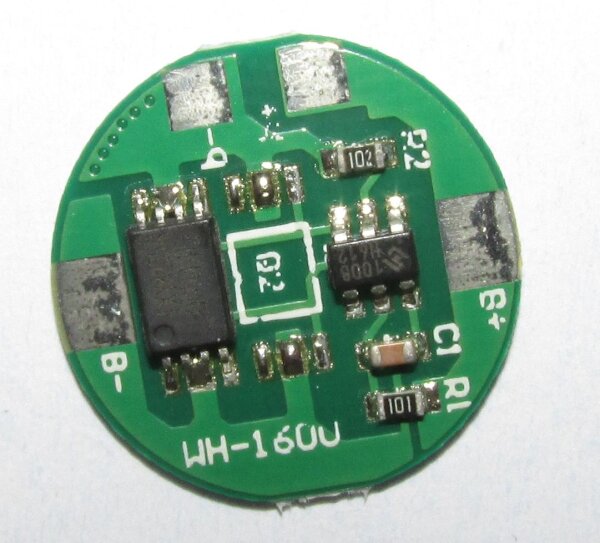

Battery-Management-System [BMS]
für 1 zellige Akkupacks [1S] - Lithium
Technische Daten:
A voltage Charging voltage DC: 5V CC / CV
Single equilibrium voltage
Current single balanced current
Single consume battery ( consumable ) = 6uA
Maximum continuous discharge current of 2A
Overcharge Protection Overcharge detection voltage 4.28 V ± 0.05V
Overcharge detection delay time 100 ms
Overcharge recovery voltage 4.08V ± 0.05V
Over-discharge protection Over -discharge detection voltage 2.40V ± 0.1V
Over discharge detection delay time of 25ms
Over-discharge recovery voltage 3.0V ± 0.10V
overcurrent protection overcurrent detection voltage 150 ± 30mv
Overcurrent detection current 4 ± 0.5A
Overcurrent detection delay time 10ms
Restore the state auto-recovery
external short circuit protection detection state
Detection delay time = 500us Restore the state auto-recovery
resistance protection circuit (MOSPET) = 45mO
Temperature Operating temperature range -40 ~ +50 Storage temperature range -40 ~ +90 9
Dimensions : 17,5*1.8mm
Falls wir den Board eine bestimmte Zelle aus unserem Sortiment anbringen sollten, so lösen Sie die Bestellung mit Zellen und diesem Artikel zusammen!
