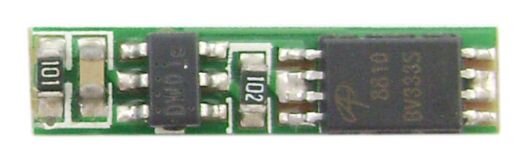

Battery-Management-System [BMS]
für 1 zellige Akkupacks [1S] - Lithium
Technische Daten:
|
|
|
|
|
| Model: PCM-LI01S6-264 |
| No |
Test item |
Lifepo4 |
Li-ion/Li-polymer |
| 1 |
Voltage |
Charging voltage |
C/CV(3.65V/cell) |
CC/CV(4.2V/cell) |
| DC:3.65V |
DC:4.2V |
| Balance voltage for single cell |
3.65V±0.025V |
4.20V±0.025V |
| 2 |
Current |
Balance current for single cell |
/ |
/ |
| Current consumption for single cell |
=10µA |
=10µA |
| Max. continuous charging current |
4A |
4A |
| Max. cont. discharging current |
4A |
4A |
| 3 |
Over charge |
Over charge detection voltage |
3.8V±0.05V |
4.4±0.05V |
| protection |
(optional) |
(optional) |
| (single cell) |
Over charge detection delay time |
0.5-2.0S |
0.5S-2.0S |
| |
Over charge release voltage |
3.8±0.05V |
4.4±0.05V |
| 4 |
Over discharge |
Over discharge detection voltage |
2.0±0.05V |
3.0±0.05V |
| protection |
(optional) |
(optional) |
| (single cell) |
Over discharge detection delay time |
50-300mS |
50-300mS |
| |
Over discharge release voltage |
1.9±0.05V |
3.1±0.1V |
| 5 |
Over current |
Over current detection voltage |
0.06~0.6V |
0.06~0.6V |
| protection |
Over current detection current |
5-10A |
5-10A |
| |
Detection delay time |
1-50ms |
1-50ms |
| |
Release condition |
Cut load, |
Cut load, |
| 6 |
Short |
Detection condition |
Exterior short circuit |
| protection |
Detection delay time |
200~500us |
| |
Release condition |
charge up |
| 7 |
Resistance |
Protection circuitry |
=60mO |
| 8 |
Temperature |
Operating Temperature Range |
-40~+85°C |
| Storage Temperature Range |
-40~+125°C |
| 9 |
Dimension |
L15*W3.7*T2.5mm |
