Battery-Management-System [BMS]
für 3 zellige Akkupacks [3S] - Lithium

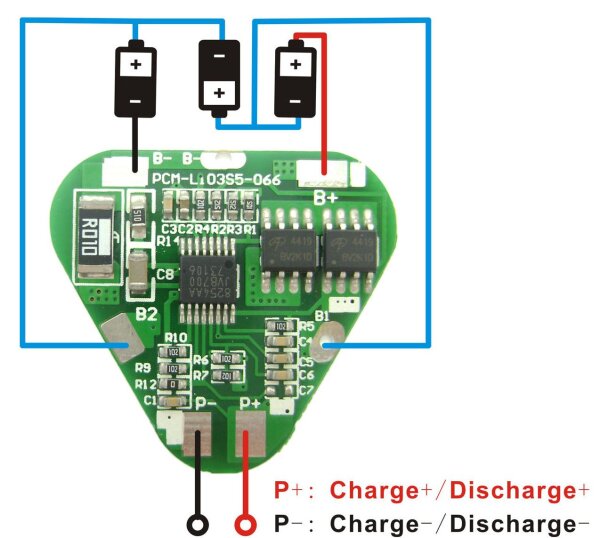

| Model: PCM-Li03S5-066 |
| No |
Test item |
Li-ion/Li-polymer |
| 1 |
Voltage |
Charging voltage |
DC:12.6V CC/CV |
| (4.2V/cell) |
| Balance voltage for single cell |
4.20V±0.025V |
| 2 |
Current |
Balance current for single cell |
/ |
| Current consumption for single cell |
≤20μA |
| Max. continuous charging current |
4A |
| Max. cont. discharging current |
4A |
| 3 |
Over charge |
Over charge detection voltage |
4.35±0.025V |
| protection |
(optional) |
| (single cell) |
Over charge detection delay time |
0.5-1.5S |
| |
Over charge release voltage |
4.15 ±0.05V |
| 4 |
Over discharge |
Over discharge detection voltage |
3.0±0.05V |
| protection |
(optional) |
| (single cell) |
Over discharge detection delay time |
50~150mS |
| |
Over discharge release voltage |
3.1±0.1V |
| 5 |
Over current |
Over current detection voltage |
0.06~0.6V |
| protection |
Over current detection current |
5~20A (adjustable) |
| |
Detection delay time |
5-15ms |
| |
Release condition |
Cut load, |
| 6 |
Short |
Detection condition |
Exterior short circuit |
| protection |
Detection delay time |
200~500us |
| |
Release condition |
charge up |
| 7 |
Resistance |
Protection circuitry |
≤50mΩ |
| 8 |
Temperature |
Operating Temperature Range |
-40~+85? |
| Storage Temperature Range |
-40~+125? |
| 9 |
Dimension |
L32*W30*T3mm |
