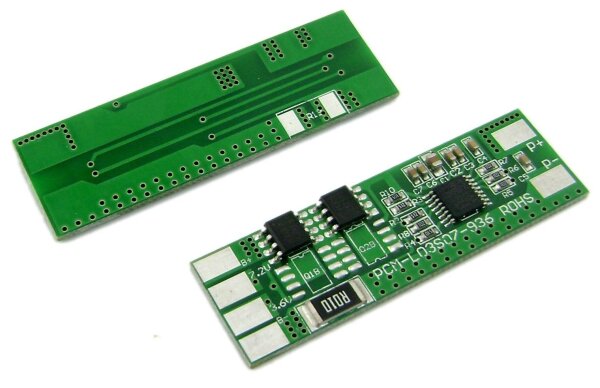

Battery-Management-System [BMS]
für 3 zellige Akkupacks [3S] - Lithium
|
No.
|
Test item
|
Criterion
|
|
1
|
Voltage |
Charging voltage |
DC:4.25+/-0.05V CC/CV |
| Balance voltage for single cell |
N/A |
|
2
|
Current |
Current consumption |
=30µA |
| Maximal continuous charging current |
6A |
| Maximal continuous Discharging current |
8A |
|
3
|
Over charge Protection |
Over charge detection delay time |
0.5S—1.5S |
| Over charge release voltage |
4.35±0.025V |
|
4
|
Over discharge protection |
Over discharge detection delay time |
100mS |
| Over discharge release voltage |
3.0±0.01V |
|
5
|
Resistance |
Protection circuitry (MOSFET) |
=100mO |
|
6
|
Temperature |
Operating Temperature Range |
-40~+85 Cent. |
| Storage Temperature Range |
-40~+125 Cent. |
|
7
|
Function |
1. Over charge protection;
2. Over discharge protection;
3. Short circuit protection;
4. Over current protection;
5. Reverse charge protection;
6. Over heat protection. |
