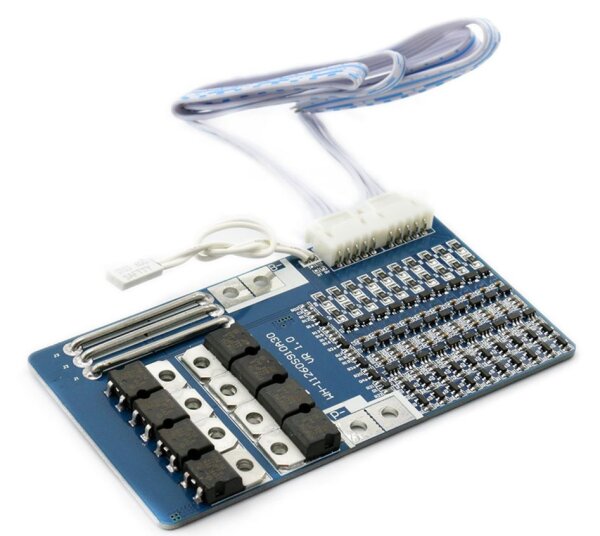

Battery-Management-System [BMS]
für 10 zellige Akkupacks [10S] - Lithium
|
No.
|
Test item
|
Criterion
|
|
1
|
Voltage |
Charging voltage |
DC:42V CC/CV |
| Balance voltage for single cell |
4.2V |
|
2
|
Current |
Balance current for single cell |
45mA |
| Current consumption |
=11µA |
| Maximal continuous charging current |
N/A |
| Maximal continuous Discharging current |
21A |
|
3
|
Over charge Protection |
Over charge detection voltage |
4.325±0.025V |
| Over charge detection delay time |
1.2S |
| Over charge release voltage |
4.075±0.025V |
|
4
|
Over discharge protection |
Over discharge detection voltage |
2.5±0.05V |
| Over discharge detection delay time |
144mS |
| Over discharge release voltage |
2.9±0.05V |
|
5
|
Over current protection |
Over current detection voltage |
200±15mV |
| Over current detection current |
47.6±3.6A |
| Detection delay time |
9ms |
| Release condition |
Cut load |
|
6
|
Short Circuit protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
=320us |
| Release condition |
Cut load |
|
7
|
Resistance |
Protection circuitry(MOSFET) |
=5.2mO |
|
8
|
Temperature |
Operating Temperature Range |
-40~+85°C |
| Storage Temperature Range |
-40~+125°C |
