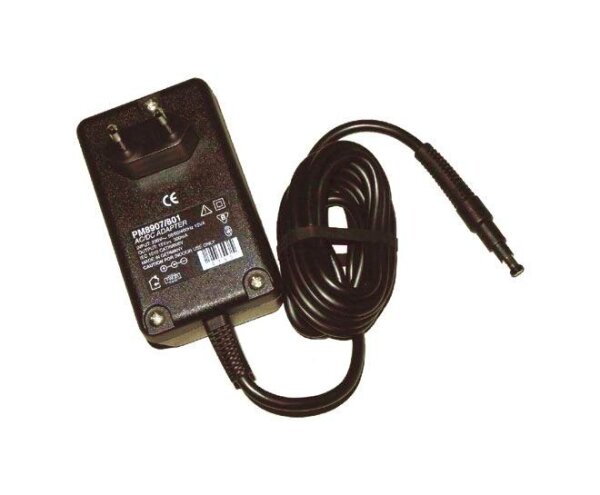

Provides power cord operation and charging for ScopeMeter 90 and 120 series as well as for the Fluke 43 and 43B Power Quality Analyzer and some accessoires.
- Mains (line voltage):
- /801 (Europe) 230 V ± 10%
- /803 (North America) 120 V ± 100%
- /804 (United Kingdom) 240 V ± 10%
- /806 (Japan) 100 V ± 10%
- /807 (Australia) 240 V ± 10%
- /808 (Universal) 115 V ± 15% or 230 V ± 15%
- /808 is equipped with a male receptacle plug that must be connected to a line cord appropriate for local use. (Line cord not included) A North American line plug adapter is included
- Frequency (all versions): 50 to 60 Hz ± 10%
- Output Voltage: 15 V
- Output Current: 300 mA max.
- Output Plug: 5 mm power jack per DIN 45323
- Power Consumption: 10 VA
- Max. Voltage to Ground: 600 V rms. CAT III per IEC 61010-31
|
|
Original-Herstellernummer: FLUKEPM8907-801, PM8907-801
Ersatz für: PM8907/001, PM8907-001
