Battery-Management-System [BMS]
für 10 zellige Akkupacks [10S] - Li-Ion

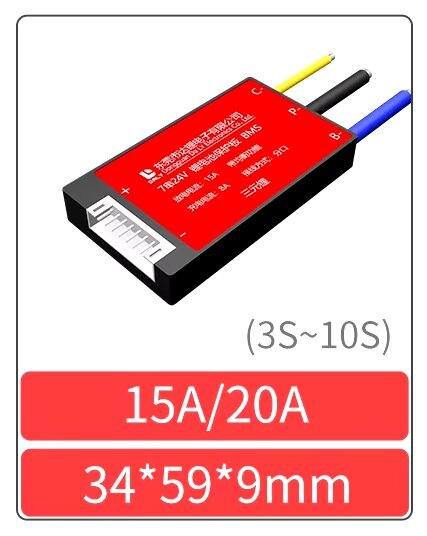

| DALY - 1-JG-62814-J10G1-C - Li-Ion / Li-Polymer
|
| 1 |
Voltage |
Charging voltage |
CC/CV(4.2V/cell)
DC:42V |
| Balance voltage for single cell |
4.20V±0.025V
|
| 2 |
Current |
Balance current for single cell |
0~30mA |
| Current consumption for single cell |
≤20μA |
| Max. continuous charging current |
8A |
| Max. cont. discharging current |
15A |
| 3 |
Over charge
protection
(single cell) |
Over charge detection voltage |
4.25±0.05V
(optional) |
| Over charge detection delay time |
0.96~1.4S |
| Over charge release voltage |
4.15±0.05V |
| 4 |
Over discharge
protection
(single cell) |
Over discharge detection voltage |
2,7±0.05V
(optional) |
| Over discharge detection delay time |
50-300mS |
| Over discharge release voltage |
3.0±0.1V |
| 5 |
Over current
protection |
Over current detection voltage |
0.06~0.6V |
| Over current detection current |
30~100A
(adjustable) |
| Detection delay time |
7.2-11ms |
| Release condition |
Cut load |
| 6 |
Short
protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
200~500us |
| Release condition |
charge up |
| 7 |
Resistance |
Protection circuitry |
≤30mΩ |
| 8 |
Temperature |
Operating Temperature Range |
" -40~+85? " |
| Storage Temperature Range |
" -40~+125? " |
| 9 |
Dimension |
L59 x W34 x T9mm |
