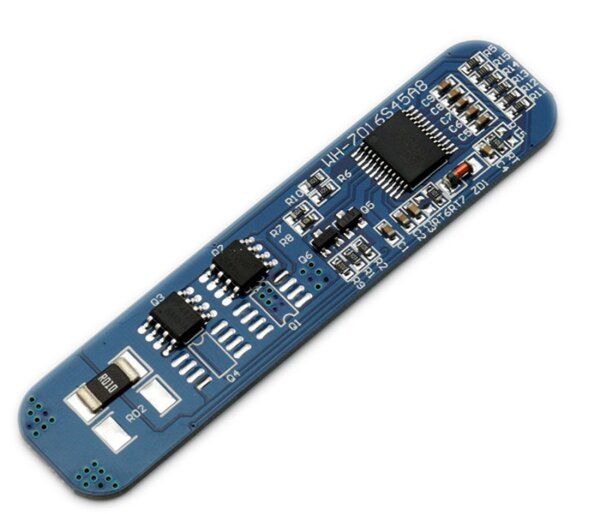

Battery-Management-System [BMS]
für 5 zellige Akkupacks [5S] - Lithium
Technische Daten:
|
No.
|
Test item
|
Criterion
|
|
1
|
Voltage |
Charging voltage |
DC:22.5-25V CC/CV |
| Balance voltage for single cell |
N/A |
|
2
|
Current |
Balance current for single cell |
N/A |
| Current consumption |
=8µA |
| Maximal continuous charging current |
N/A |
| Maximal continuous Discharging current |
5.2A |
|
3
|
Over charge Protection |
Over charge detection voltage |
4.25±0.025V |
| Over charge detection delay time |
1S |
| Over charge release voltage |
4.1±0.025V |
|
4
|
Over discharge protection |
Over discharge detection voltage |
2.5±0.025V |
| Over discharge detection delay time |
128mS |
| Over discharge release voltage |
3±0.025V |
|
5
|
Over current protection |
Over current detection voltage |
200±20mV |
| Over current detection current |
20±2A |
| Detection delay time |
10.8ms |
| Release condition |
Cut load |
|
6
|
Short Circuit protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
=550us |
| Release condition |
Cut load |
|
7
|
Resistance |
Protection circuitry (MOSFET) |
=20mO |
|
8
|
Temperature |
Operating Temperature Range |
-40~+85 Cent. |
| Storage Temperature Range |
-40~+125 Cent. |
