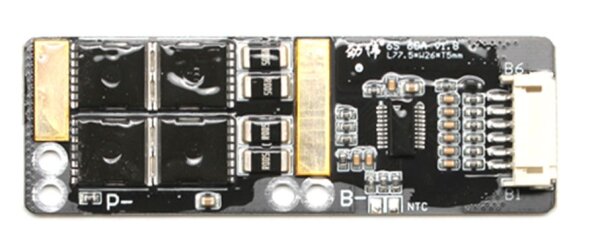

Battery-Management-System [BMS]
für 6 zellige Akkupacks [6S] - Lithium [25,2 Volt]
|
serial number
|
project
|
Test standards
|
unit
|
|
minimum
|
Typical value
|
maximum
|
|
0
|
Overview of parameters
|
Rated operating voltage B-B-
|
|
|
30
|
V
|
|
Rated discharge current
|
|
40
|
50
|
A
|
|
Peak start current
|
|
80
|
|
A
|
|
1
|
Overcharge protection
|
The P-P-input is subject to voltage
|
|
|
40
|
V
|
|
Charge overcurrent protection value
|
|
There are no restrictions
|
|
A
|
|
Charge detection voltage
|
4.200
|
4.225
|
4.250
|
V
|
|
Charging detection delay time
|
0.5
|
1
|
1.3
|
S
|
|
Overcharge to devolt
|
4.000
|
4.005
|
4.050
|
V
|
|
2
|
Over-release protection
|
Discharge detection voltage
|
2.650
|
2.700
|
2.750
|
V
|
|
Discharge detection delay time
|
20
|
100
|
150
|
ms
|
|
Discharge to remove the voltage
|
2.85
|
2.95
|
3.05
|
V
|
|
Protection release conditions
|
Disconnect the external load or charge self-recovery
|
|
3
|
Overcurrent protection
|
Overcurrent to detect voltage
|
|
0.1
|
|
V
|
|
Overcurrent protects the current
|
20
|
23
|
25
|
A
|
|
Overcurrent protection time
|
0.7
|
1
|
1.3
|
S
|
|
|
|
|
|
|
|
Protection release conditions
|
Disconnect the external load or charge self-recovery
|
|
4
|
Short-circuit protection
|
Short-circuit protection current
|
|
40
|
|
A
|
|
Detect delay time
|
150
|
250
|
400
|
μS
|
|
Protection release conditions
|
Disconnect the external load or charge self-recovery
|
|
5
|
Resistance
|
The main circuit pass-through resistance
|
|
9
|
10
|
mΩ
|
|
6
|
Consumes current
|
Usually the operation consumes current
|
|
10
|
15
|
μA
|
|
7
|
Static current
|
Current is consumed during hibernation
|
|
|
2.5
|
μA
|
|
9
|
Operating temperature
|
-
|
-40
|
25
|
85
|
℃
|
|
10
|
Appearance size
|
Length, width, thickness
|
L60*W23*T5mm
|
mm
|
