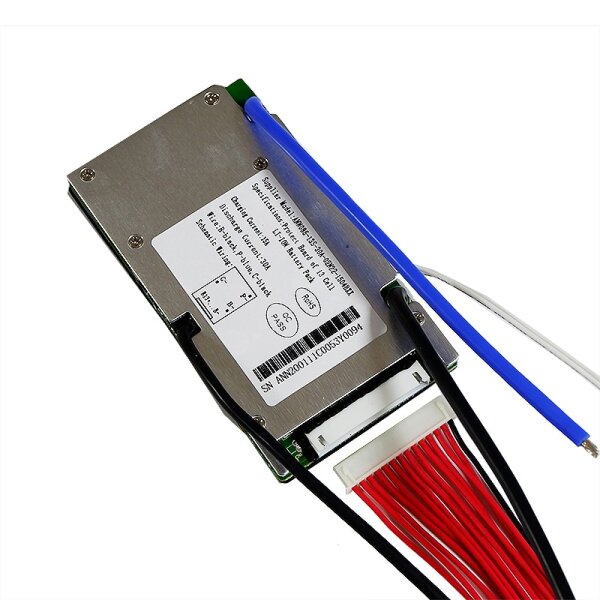

Battery-Management-System [BMS]
für 13 zellige Akkupacks [13S] - Lithium
Eigenschaften:
| No. |
Test Item |
Min. |
Typ. |
Max |
Unit |
| 1 |
Input Charging Voltage |
54.4 |
54.6 |
54.8 |
V |
| 2 |
Input Charging Current |
13S 48V 20A |
2 |
3 |
8 |
A |
| 13S 48V 30A |
|
10 |
15 |
| 13S 48V 40A |
|
10 |
15 |
| 13S 48V 50A |
|
15 |
|
| 3 |
Output Discharging Current |
13S 48V 20A |
15 |
20 |
22 |
A |
| 13S 48V 30A |
|
30 |
|
| 13S 48V 40A |
|
40 |
|
| 13S 48V 50A |
|
50 |
52 |
| 4 |
Over-Current Discharging Protection |
13S 48V 20A |
45 |
50 |
55 |
A |
| 13S 48V 30A |
85 |
100 |
115 |
| 13S 48V 40A |
85 |
110 |
115 |
| 13S 48V 50A |
95 |
110 |
120 |
| 5 |
Current Consumption |
10 |
15 |
25 |
uA |
| 6 |
Balance Current |
40 |
45 |
50 |
mA |
| 7 |
Balance Voltage |
4,16 |
4,18 |
4,2 |
V |
| 8 |
Over-Charge Protection Voltage |
4,21 |
4,25 |
4,3 |
V |
| 9 |
Over-Charge Protection Voltage Release |
4 |
4,15 |
4,2 |
V |
| 10 |
Over-Charge Protection Voltage Delay Time |
1 |
1,5 |
2 |
S |
| 11 |
Over-Discharge Protection Voltage |
2,42 |
2,5 |
2,58 |
V |
| 12 |
Over-Discharge Protection Voltage Release |
2,9 |
3 |
3,1 |
V |
| 13 |
Over-Discharge Protection Voltage Delay Time |
1 |
1,5 |
2 |
S |
| 14 |
Short Circuit Protection Release |
Remove the load |
| 15 |
Impedance |
|
8 |
15 |
mΩ |
| 16 |
Operating Temperature |
-15 |
25 |
45 |
ºC |
| 17 |
Storage Temperature |
-20 |
25 |
30 |
ºC |
| 18 |
PCBA Size |
13S 48V 20A |
71(±0.5)×51(±0.5)×≤10 |
mm |
| 13S 48V 30A |
108(±0.5)×60(±0.5)×≤12 |
| 13S 48V 40A |
108(±0.5)×60(±0.5)×≤12 |
| 13S 48V 50A |
108(±0.5)×85(±0.5)×≤14 |
| |
|
|
|
|
|
|
|
|
