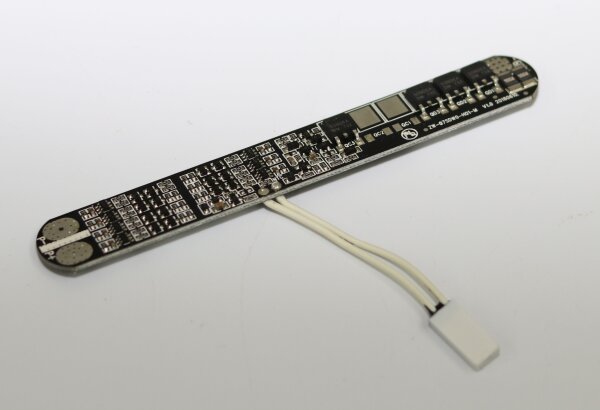

Battery-Management-System [BMS]
für 7 zellige Akkupacks [7S] - Lithium
| Test Item |
Content |
Min |
Typical |
Max |
Unit |
Note |
| Voltage |
Charge Voltage |
|
25,5 |
26 |
Volt |
7x3,65V |
| Over Charge Detection Voltage |
3,6 |
3,65 |
3,7 |
Volt |
(any cell) |
| Over Charge Release Voltage |
3,4 |
3,45 |
3,5 |
Volt |
(any cell) |
| Over Discharge Detection Voltage |
2,25 |
2,35 |
2,45 |
Volt |
(any cell) |
| Over Discharge Release Voltage (any cell) |
2,225 |
2,3 |
2,35 |
Volt |
(any cell) |
| Cell Balancing |
3,35 |
3,405 |
3,41 |
Volt |
(any cell) |
| Current |
Discharge Over-Current Protection |
|
25 |
|
A |
|
| Over Current Delay Time |
10 |
20 |
30 |
mS |
|
| Short Circuit Protection |
|
|
30 |
A |
|
| Short Circuit Protect Delay Time |
200 |
250 |
300 |
uS |
|
| Normal Charging Current |
|
5 |
|
A |
|
| Blance Open Current |
|
30 |
|
mA |
|
| Normal Discharging Current |
|
15 |
|
A |
continuously working |
| Temperature Protection / Charge |
Over Temperature Protection |
73 |
75 |
77 |
°C |
|
| Over Temperature Protection Recover |
|
73 |
|
°C |
|
| Low Temperature Protection |
|
N/A |
|
°C |
|
| Low Temperature Protection Recover |
|
N/A |
|
°C |
|
| Temperature Protection / Discharge |
Over Temperature Protection |
73 |
75 |
77 |
°C |
|
| Over Temperature Protection Recover |
|
73 |
|
°C |
|
