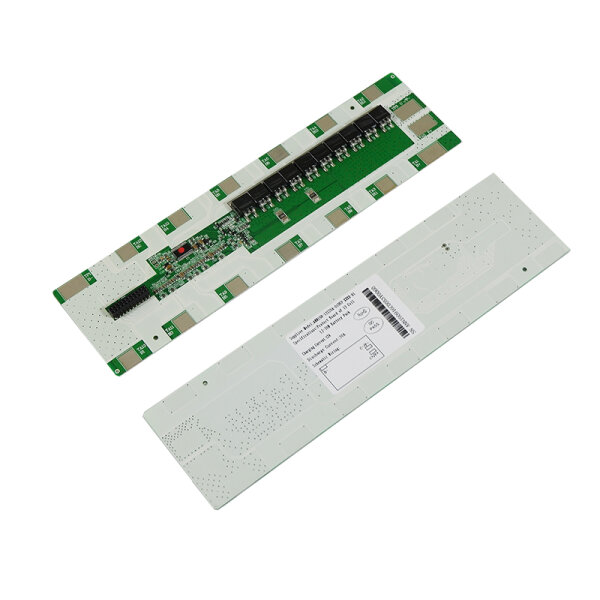

Battery-Management-System [BMS]
für 13 zellige Akkupacks [13S] - Lithium
| Details |
Min. |
Typ. |
Max |
Error |
Unit |
| Battery Gas |
3.7V lithium battery |
|
| Battery Link |
13S |
|
| Input Charging Voltage |
|
54.60 |
|
±1% |
V |
| Input Charging Current |
|
2 |
Max5A |
A |
| Output Discharging Voltage |
|
48.1 |
|
|
V |
| Continuous Output Discharging Current |
|
25 |
MAX30A |
A |
| Ambient Condition |
Operating Temperature |
-20 |
25 |
60 |
|
? |
| |
Humidity (No Water-Drop) |
0% |
|
90% |
|
RH |
| Storage Condition |
Temperature |
-40 |
|
85 |
|
? |
| |
Humidity (No Water-Drop) |
0% |
|
90% |
|
RH |
| Protection Parameters (for Individual Cell). |
| Over-Charge Voltage Protection (OVP) |
|
Apr 25 |
|
±20mV |
V |
| Over-Charge Voltage Protection Release (OVPR) |
|
Apr 15 |
|
±50mV |
V |
| Over-Charge Voltage ProtectionDelay Time (OVPDT) |
0.5 |
1.0 |
01. Mai |
|
S |
| Over-Discharge Voltage Protection (UVP) |
|
Feb 75 |
|
±80mV |
V |
| Over-Discharge Voltage Protection Release (UVPR) |
3.00 |
±100mV |
V |
| Over-Discharge Voltage ProtectionDelay Time (UVPDT) |
50 |
100 |
150 |
|
mS |
| Over-Current Discharge Protection (OCDP) |
|
45 |
|
±8 |
A |
| Over-Current Protection Delay Time (OCPDT) |
|
47 |
|
±22 |
mS |
| Over-DischargeProtection Release |
|
Release load |
| Over-Current Discharge Protection Release |
|
Release load |
| Short circuit current protection delay time |
200 |
320 |
600 |
|
uS |
| Short circuit protection Release |
Release load |
| Idle mode |
=60 |
uA |
| Main loop electrify resistance MOS-RDS |
=30 |
mO |
| PCBASize |
230(±0.3)×61(±0.3)×<10 |
mm |
