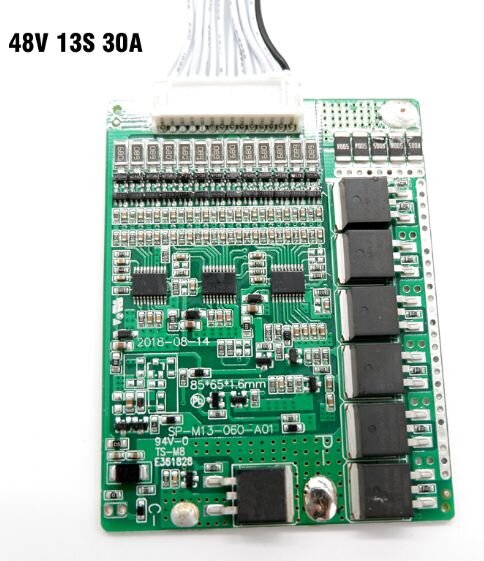

Battery-Management-System [BMS]
für 13 zellige Akkupacks [13S] - Lithium
| No. |
Test Item |
BMS |
Unit |
| Min. |
Typ. |
Max |
| 1 |
Input Charging Voltage |
54 |
54,6 |
55 |
V |
| 2 |
Input Charging Current |
|
5,00 |
|
A |
| 3 |
Continuous Output Discharging Current |
|
30,00 |
32,00 |
A |
| 4 |
Over-Current Discharging Protection |
|
80,00 |
85,00 |
A |
| 5 |
Over-Current Protection Delay Time (OCPDT) |
0.5 |
1.0 |
1,50 |
S |
| 6 |
Current Consumption |
25,00 |
30,00 |
35,00 |
uA |
| 7 |
Balance Current |
44,00 |
49,00 |
54,00 |
mA |
| 8 |
Balance Voltage |
4,16 |
4,18 |
4,20 |
V |
| 9 |
Over-Charge Voltage Protection (OVP) |
4,18 |
4,20 |
4,25 |
V |
| 10 |
Over-Charge Protection Voltage Delay Time |
1.0 |
1,50 |
2,00 |
S |
| 11 |
Over-Discharge Protection Voltage |
2,70 |
2,75 |
2,80 |
V |
| 12 |
Over-Discharge Protection Voltage Delay Time |
1.0 |
1,50 |
2.0 |
mS |
| 13 |
Short Circuit Protection Release |
Remove the load |
|
| 14 |
Impedance |
|
8,00 |
15,00 |
mO |
| 15 |
Operating Temperature |
-20,00 |
+25,00 |
+60,00 |
ºC |
| 16 |
Storage Temperature |
-10,00 |
+25,00 |
+45,00 |
ºC |
