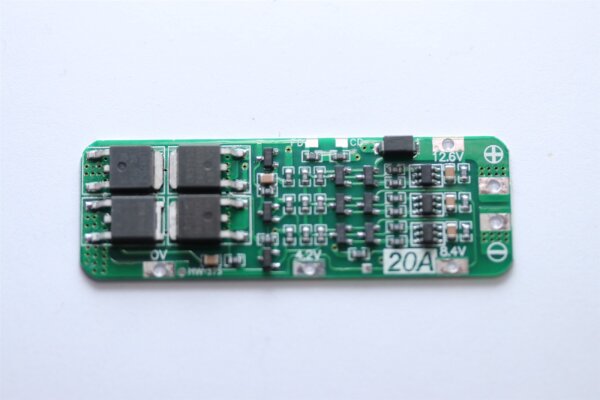

Battery-Management-System [BMS]
für 3 zellige Akkupacks [3S] - Lithium
-
|
No.
|
Test item
|
Criterion
|
|
1
|
Voltage |
Charging voltage |
DC:12.6V CC/CV |
| Balance voltage for single cell |
N/A |
|
2
|
Current |
Balance current for single cell |
N/A |
| Current consumption |
=8µA |
| Maximal continuous charging current |
N/A |
| Maximal continuous Discharging current |
20A |
|
3
|
Over charge Protection |
Over charge detection voltage |
4.35±0.025V |
| Over charge detection delay time |
1S |
| Over charge release voltage |
4.15V |
|
4
|
Over discharge protection |
Over discharge detection voltage |
2.7±0.08V |
| Over discharge detection delay time |
100mS |
| Over discharge release voltage |
3.0V |
|
5
|
Over current protection |
Over current detection voltage |
200±25mV |
| Over current detection current |
30±1A |
| Detection delay time |
10ms |
| Release condition |
Cut load |
|
6
|
Short Circuit protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
200-500us |
| Release condition |
Cut load |
|
7
|
Resistance |
Protection circuitry (MOSFET) |
=8mO |
|
8
|
Temperature |
Operating Temperature Range |
-40~+85 Cent. |
| Storage Temperature Range |
-40~+125 Cent. |
Falls wir den Board eine bestimmte Zelle aus unserem Sortiment anbringen sollten, so lösen Sie die Bestellung mit Zellen und diesem Artikel zusammen und geben Sie uns einen Hinweis, dass wir das BMS an den Akkupack anbringen sollten
