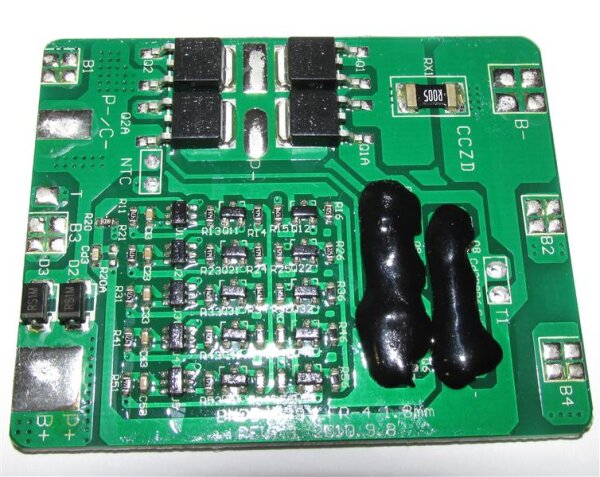

Battery-Management-System [BMS]
für 5 zellige Akkupacks [5S] - Lithium
Technische Daten:
| No. |
Test item |
MIN |
TYPE |
MAX |
unit |
| 1 |
Charging Voltage |
|
21 |
|
V |
| 2 |
Charging Current |
|
8 |
10 |
A |
| 3 |
Discharge Current |
|
8 |
10 |
A |
| 4 |
Over Current Protection |
25 |
29 |
33 |
A |
| 5 |
Singles cell consumption current |
|
5 |
10 |
uA |
| 6 |
Overcharge detection voltage |
01.04.15 |
4200 |
01.04.25 |
V |
| 7 |
Overcharge release voltage |
01.04.00 |
04.10.14 |
01.04.20 |
V |
| 8 |
Overcharge detection delay time |
0.96 |
01.01.20 |
01.01.44 |
S |
| 9 |
Overdischarge detection voltage |
01.02.72 |
01.02.80 |
01.02.88 |
V |
| 10 |
Overdischarge release voltage |
01.02.80 |
01.02.90 |
01.03.00 |
V |
| 11 |
Overdischarge detection delay time |
115 |
144 |
172 |
mS |
| 12 |
Shortcircuit/overdischarge/overcurrent protection recovery |
Automatic recovery after the removal of the load |
| 13 |
Protection circuit resistance |
|
8 |
15 |
mO |
| 14 |
Temperature rise of the MOSFET |
|
45 |
60 |
ºC |
| 15 |
Operating temperature range |
-20 |
25 |
85 |
ºC |
| 16 |
Storage temperature range |
-20 |
25 |
85 |
ºC |
